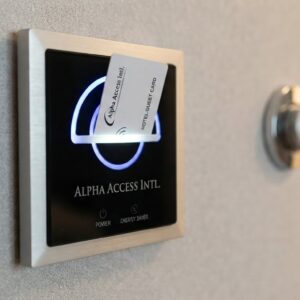

RFID Card Switch
Smart Energy Control & Secure Access Activation with RFID Keycards
Product Overview
The RFID Card Switch is a modern access and energy management device designed to work with RFID keycards (typically 13.56 MHz). It activates electrical circuits—such as lighting, air conditioning, or door locks—when an authorized card is inserted. Widely used in hospitality, residential, and commercial spaces, it improves security, reduces energy waste, and enhances the overall user experience.
Technical Specifications
| Feature | Details |
| Product Type | RFID Card Energy Switch / Access Switch |
| Material | High-quality flame-retardant ABS or PC plastic (option for glass finish) |
| RFID Frequency | 13.56 MHz |
| Supported Card Types | MIFARE Classic® 1K, MIFARE Ultralight®, NTAG®, DESFire EV2 |
| Card Compatibility | RFID cards only (does not support magnetic stripe cards) |
| Input Voltage | AC 100V–240V |
| Maximum Load | 30A (Relay contact rating), suitable for lighting & HVAC control |
| Output Delay | Configurable (typically 10–30 seconds after card removal) |
| Indicator Light | LED (power status and card detection indicator) |
| Installation | Wall-mount, fits standard 86mm x 86mm electrical box |
| Color Options | White, Black, Silver, or custom finishes |
| Operating Temperature | -10°C to 60°C |
| Dimensions | 86 mm x 86 mm x 40 mm (Standard EU panel size) |
⚙️ Applications
- Hotel Rooms (Power control using RFID room keys)
- Office Spaces (Authorized door or system activation)
- Serviced Apartments
- Smart Homes and Energy-Efficient Buildings
- Co-living & Student Housing
✅ Key Benefits
- Energy Saving: Automatically cuts power when guests remove card and leave the room
- Security: Only RFID-issued cards can activate switch—prevents unauthorized access
- Smart Control: Delay-off function ensures devices turn off after a set period post-removal
- Durability: Built for high-traffic environments with robust relay and housing
- Design Flexibility: Aesthetic finishes available to suit premium interiors
